Model:WS-C3850-48P-E Catalyst 3850 Switch
Detail:Cisco Catalyst 3850 48 Port PoE IP Services
Condition:Brand New Sealed
Availability: In stock
WS-C3850-48P-E Overview
Cisco Catalyst 3850-48P-E switch is the next generation stackable
enterprise level switch and integrated with 48 Ethernet POE + ports
with IP Services IOS image.
Quick Specs

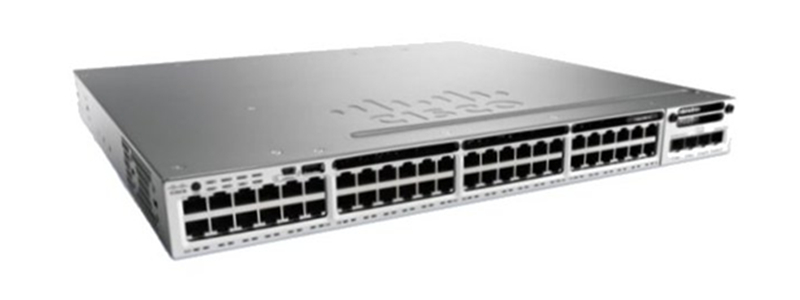

Figure 1 shows the appearance of WS-C3850-48P-E.
Table 1 shows the Quick Specs.
| Product Code | WS-C3850-48P-E |
| Enclosure Type | 1 RU |
| Feature Set | IP Services |
| Available PoE Power | 435W |
| Network SFP uplink module selection | C3850-NM-4-1G
C3850-NM-2-10G
C3850-NM-4-10G |
| Ports | 48 x 10/100/1000 (POE+) |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Forwarding Performance | 130.95 Mpps |
| Switching Capacity | 176 Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 44.5 cm x 44.5 cm x 4.45 cm |
| Package Weight | 17.49 Kg |
Product Details
Figure 2 shows the front panel of the WS-C3850-48P-E.
Note:
| ① | Mode button | ④ | USB Type A storage port |
| ② | Status LEDs | ⑤ | 48 * 10/100/1000 Ethernet ports |
| ③ | USB mini-Type B (console) port | ⑥ | Network SFP uplink module slot |
• The status LEDs include STAT (status), DUPLX (duplex), SPEED,
STACK, SYST (system), PoE, ACTV (active) and S-PWR (Stack Power).
• The switch supports one hot-swappable network module that
provides uplink ports to connect to other devices. The switch
should only be operated with either a network module or a blank
module installed.
Figure 3 shows the back panel of the WS-C3850-48P-E.
Note:
| ① | Ground connector | ⑤ | StackWise port connectors |
| ② | CONSOLE (RJ-45 console port) | ⑥ | StackPower connectors |
| ③ | Fan modules | ⑦ | Power supply modules |
| ④ | MGMT port | | |
Figure 4 shows the StackWise-480 and StackPower connectors.
The StackWise-480 Technology makes Cisco 3850 switches deliver Up
to 9 members stacking and up to 480Gbps of stack throughput.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules, licenses and accessories of
this switch.
| Models | Description |
| C3850-NM-4-1G | Cisco 3850 Series 4 x 1GE Network Module |
| C3850-NM-2-10G | Cisco 3850 Series 2 x 10GE Network Module |
| C3850-NM-4-10G | Cisco 3850 Series 4 x 10GE Network Module |
| PWR-C1-350WAC | Cisco 3850 Series Power Supply 350W AC |
| PWR-C1-350WAC/2 | Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary
Power Supply |
| CAB-SPWR-30CM= | Catalyst 3750X and 3850 Stack Power Cable 30 CM |
| CAB-SPWR-150CM | Catalyst 3750X and 3850 Stack Power Cable 150 CM |
| STACK-T1-50CM= | Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850
series switch |
| STACK-T1-1M= | Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850
series switch |
Compare to Similar Items
Table 3 shows the comparison between WS-C3850-48P-S and
WS-C3850-48P-E.
| Models | WS-C3850-48P-S | WS-C3850-48P-E |
| Feature Set | IP Base | IP Service |
| Network SFP uplink module selection | C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G | C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G |
| Ports | 48 x 10/100/1000 Ethernet ports | 48 x 10/100/1000 Ethernet ports |
| Available PoE Power | 435W | 435W |
