PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch

    Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers

    Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers
    • Buy cheap PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch from wholesalers

    PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch

    Ask Lasest Price
    Brand Name : CISCO
    Model Number : PWR-C1-350WAC
    Price : Negotiable
    Payment Terms : T/T, WU, MoneyGram
    Supply Ability : 80pcs/week
    Delivery Time : 1-3Days
    • Product Details
    • Company Profile

    PWR-C1-350WAC Cisco Power Supply 4-2A 100-240VAC 50-60 Hz 1.58 X 3.25 X 12.20 Inch

    PWR-C1-350WAC Cisco Power Supply for Cisco 3850 Series Switches


    Cisco 3850 Series Power Supply PWR-C1-350WAC 350W AC Config 1 Power Supply

    Brand New Sealed


    PWR-C1-350WAC Overview

    Cisco 3850 Series Power Supply - PWR-C1-350WAC 350W AC Config 1 Power Supply for 3850 Series.

    Quick Specs

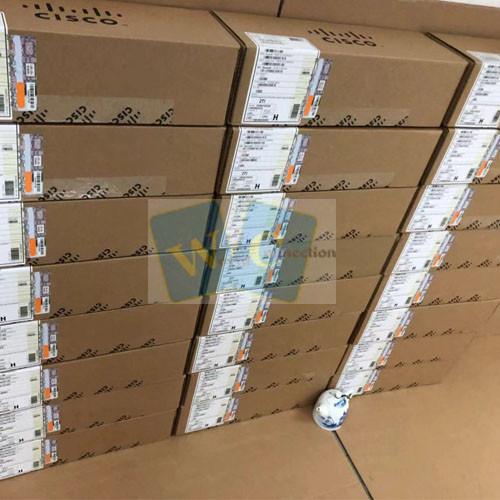

    Figure 1 shows the appearance of PWR-C1-350WAC.

    Table 1 shows the Quick Specs.

    Product Code

    PWR-C1-350WAC

    Power supply rated maximum

    350W

    Total output BTU (Note: 1000 BTU/hr = 293W)

    1207BTU/hr, 350W

    Input-voltage range and frequency

    100-240VAC,

    50-60 Hz

    Input current

    4-2A

    Output ratings

    -56V at 6.25A

    Output holdup time

    16.7 ms minimum at 100VAC

    Power-supply input receptacles

    IEC 320-C16 (IEC60320-C16)

    Power cord rating

    10A

    Physical specifications

    (H x W x D): 1.58 X 3.25 X 12.20 in

    Weight: 2.6 lb
    (1.2 kg)

    The Modules, Cards, Licenses


    Table 2 shows the recommended elements for the PWR-C1-350WAC.

    Category

    Model

    Description

    Power Cable


    CAB-TA-NA

    North America AC Type A Power Cable

    CAB-TA-JP

    Japan AC Type A Power Cable

    CAB-C15-CBN

    Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors

    Compare to Similar Items


    Table 3 shows the comparison of PWR-C1-350WAC, PWR-C1-440WDC, PWR-C1-1100WAC and PWR-C1-715WAC=.

    Product Code

    PWR-C1-350WAC

    PWR-C1-440WDC

    PWR-C1-715WAC=

    PWR-C1-1100WAC

    Power supply rated maximum

    350W

    440W

    715W

    1100W

    Total output BTU (Note: 1000 BTU/hr = 293W)

    1207BTU/hr, 350W

    1517BTU/hr, 440W

    2465 BTU/hr, 715W

    3793 BTU/hr, 1100W

    Input-voltage range and frequency

    100-240VAC,

    50-60 Hz

    -36VDC to -72VDC

    100-240VAC,

    50-60 Hz

    115-240VAC,

    50-60 Hz

    Input current

    4-2A

    <8A at -72VDC

    <16A at -36VDC

    10-5A

    12-6A

    Output ratings

    -56V at 6.25A

    -56V at 7.86A

    -56V at 12.8A

    -56V at 19.64A

    Output holdup time

    16.7 ms minimum at 100VAC

    > 2ms at -48VDC

    16.7 ms minimum at 100VAC

    10 ms minimum at 102.5VAC

    Power-supply input receptacles

    IEC 320-C16 (IEC60320-C16)

    Terminal strip

    IEC 320-C16

    (IEC60320-C16)

    IEC 320-C16

    (IEC60320-C16)

    Power cord rating

    10A

    20A at 100VDC

    13A

    13A
