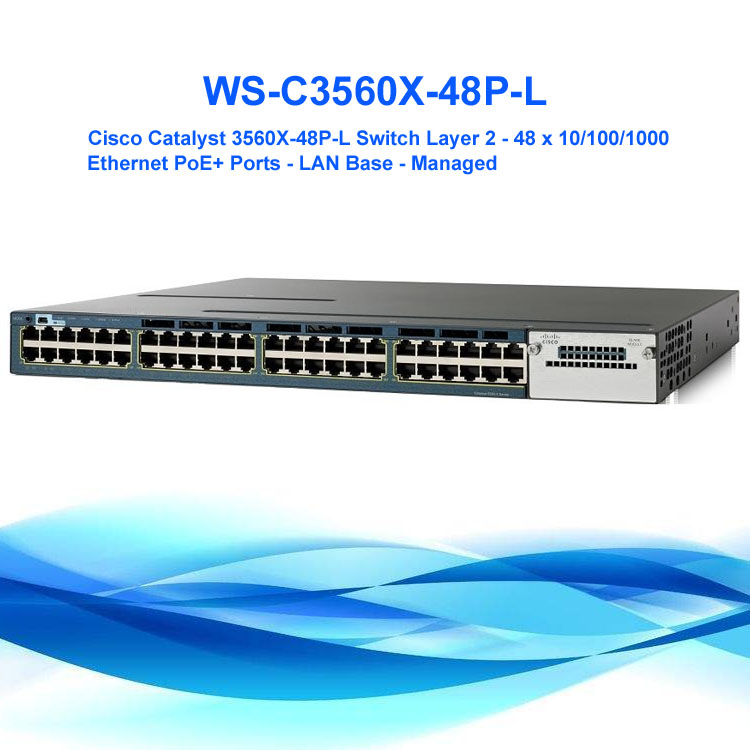

WS-C3560X-48P-L Cisco 3560 Series 48 Port Gigabit Poe Network Switch
Product Description
WS-C3560X-48P-L: Cisco Catalyst 3560X-48P-L Switch Layer 2 - 48 x 10/100/1000
Ethernet PoE+ Ports - LAN Base - Managed
| Part Number | WS-C3560X-48P-l |
| Device Type | Switch - 48 ports POE - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 POE |
| Performance | Switching fabric bandwidth: 160 Gbps |
| Capacity | Virtual interfaces (VLANs): 255 |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3,
SNMP 2c, TFTP, SSH, CLI |
| Features | Hot swap module replacement, Layer 2 switching, dynamic IP address
assignment, DHCP support, power over Ethernet (PoE),
auto-negotiation, ARP support, trunking, VLAN support, auto-uplink
(auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping,
Broadcast Storm Control, High Availability, Multicast Storm
Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP)
support, DHCP snooping, Dynamic Trunking Protocol (DTP) support,
Port Aggregation Protocol (PAgP) support, Trivial File Transfer
Protocol (TFTP) support, Access Control List (ACL) support, Quality
of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP
Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+),
Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR),
Link Aggregation Control Protocol (LACP), Remote Switch Port
Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE
802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 46 cm x 4.5 cm |
| Weight | 7.3 kg |
| Warranty | 1 year warranty |
Cisco Catalyst WS-C3560X-48P-L is 48 Gigabit Ethernet POE+ ports
standalone switch in LAN base feature set with no stacking option.
Four optional network modules and license-base software feature
provide flexibility, scalability and feature extensibility in order
to reduce the cost of development of business needs.
WS-C3560X-48P-L support IEEE802.3at standard to allocate up to 30W
power on each port in total 435W POE budget to power up IP phones,
wireless and video; customers can specify the power setting on
individual port in command line setting. LAN base feature set
offers up to 255-Vlans and comprehensive layer 2 feature with
static routing and SVI interface supporting.
WS-C3560X-48P-L is designed for enterprise access layer switching;
however, customers can transparently upgrade the software feature
to by purchasing either IP base license or IP services license to
activate layer 3 capability, 1005 VLans supporting. WS-C3560X-48P-L
comes with one default power supply module, customers can purchase
additional power supply insert into power supply bay 2 in order to
power redundancy.
Packaging & Shipping
Packaging of WS-C3560X-48P-L:
CISCO Original Package + Double Carton box to Protect
FAQ
(1) Is this WS-C3560X-48P-L NIB?
Yes, it is NIB and with clean serial.
(2) How long is your warranty time?
We have 1 year warranty for our new items, and 90 days warranty for
the used.
(3) If have quality issue with your WS-C3560X-48P-L, how can you solve it?
If within our warranty, we can refund or replace for you.
If out of warranty, we can repair for you.
(4) How do you ship the CISCO switch WS-C3560X-48P-L to me?
We cooperate with DHL, TNT, Fedex, UPS directly, not through
forwarder, so most time we can ship them faster. It always takes
1-2 days to Asia, and 2-3 days to EU & Middle East.
