Product Description
Cisco Catalyst 2960-XR series switches offer power resiliency with
optional dual field-replaceable power supplies and IP Lite Cisco
IOS software with dynamic routing and Layer 3 features.
WS-C2960XR-48TD-I is one of 2960-XR switches, IP Lite switch,
supporting forty-eight 10/100/1000 Ethernet ports and two 10G SFP+
uplinks. IP Lite Image enables basic access layer 3 routing
features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM
stub, etc.

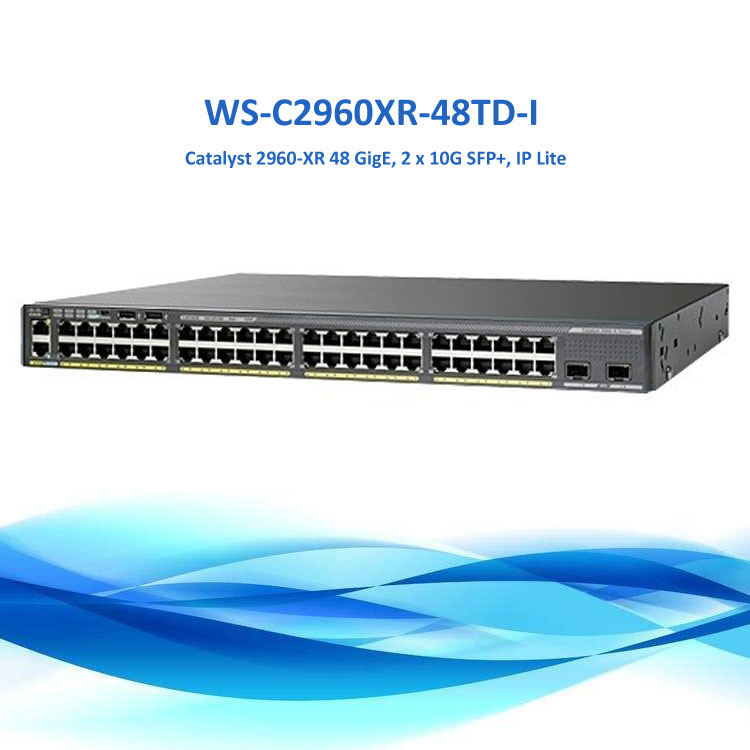

WS-C2960XR-48TD-I: Catalyst 2960-XR 48 GigE, 2 x 10G SFP+, IP Lite
| Product Description | Cisco Catalyst 2960-XR 48 GigE, 2 x 10G SFP+, IP Lite |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | IP Lite |
| Ports | 48 x Ethernet 10/100/1000 Gigabit ports |
| Power Over Ethernet (PoE) | None |
| Performance | Switching capacity : 216 Gbps ¦ Forwarding performance : 130.9Mpps |
| MAC Address Table Size | 16K (default) |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c,
SNMP 3, SSH, Telnet |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation,
Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco Fast
EtherChannel, Class of Service (CoS), DHCP snooping, Dynamic ARP
Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy
Efficient Ethernet, IGMP snooping, IPv6 support, Layer 2 switching,
Layer 3 load balancing, Link Aggregation Control Protocol (LACP),
MLD snooping, Multicast Storm Control, Multicast VLAN Registration
(MVR), Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN
Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP)
support, Quality of Service (QoS), RADIUS support, Rapid Spanning
Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN),
Shaped Round Robin (SRR), Strict Priority Queuing (SPQ), Trivial
File Transfer Protocol (TFTP) support, Uni-Directional Link
Detection (UDLD), Unicast Storm Control, VLAN support |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE
802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE
802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE
802.3x, IEEE 802.3z |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.5 in x 16.1 in x 1.8 in |
| Weight | 13.45 lbs |
Packaging & Shipping
CISCO Original Package + Double Carton box to Protect
Why choose us?
GPL discount for WS-C2960XR-48TD-I can reach 70% above
FAQ
(1) Is this WS-C2960XR-48TD-I NIB?
Yes, it is NIB and with clean serial.
(2) How long is your warranty time?
We have 1 year warranty for our new items, and 90 days warranty for
the used.
(3) If have quality issue with your WS-C2960XR-48TD-I, how can you solve it?
If within our warranty, we can refund or replace for you.
If out of warranty, we can repair for you.
(4) How do you ship the CISCO switch WS-C2960XR-48TD-I to me?
We cooperate with DHL, TNT, Fedex, UPS directly, not through
forwarder, so most time we can ship them faster. It always takes
1-2 days to Asia, and 2-3 days to EU & Middle East.
